AMELH6020S-R20MT PCB Case: Saturation Fail & Fixes

Date: 2026-01-29 18:43:54 Source: Browse: 0

What the AMELH6020S-R20MT Is and Why Inductor Saturation Matters

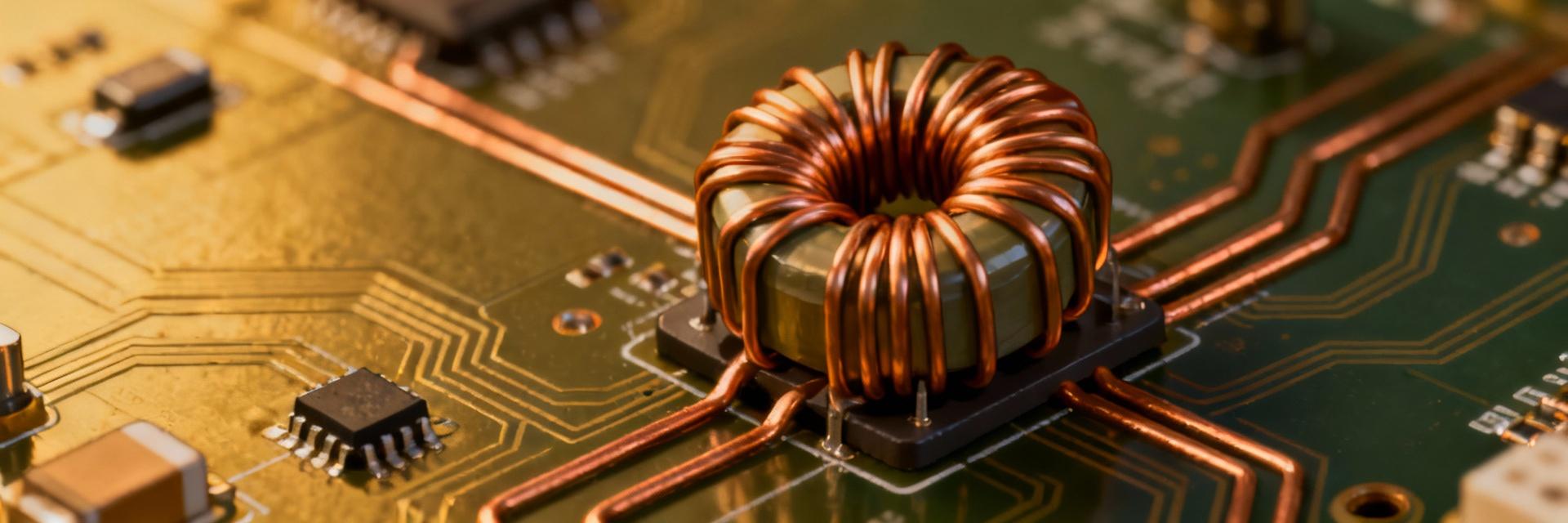

AMELH6020S-R20MT Technical Visualization

Quick Spec Overview and Typical Use Cases

Point: The part is a compact power inductor intended for high-current DC–DC use.
Evidence: Typical units report nominal inductance in the low-µH range, rated continuous currents in single-digit to low-teens of amperes, and DCR in the milliohm range.
Explanation: Such specs fit high-current buck converters and power-rail filtering on compact PCBs.

How Saturation Affects Circuit Behavior

Point: Core flux limit drives saturation, which reduces inductance and degrades filtering.
Evidence: When saturation occurs, measured inductance can collapse, ripple voltage rises, and dissipation concentrates on the part and nearby copper.
Explanation: Saturation increases ripple and thermal stress on the PCB, raising EMI and reducing rail reliability under transient loading.

Real-world Failure Modes: Data Analysis

Comparative Impact Analysis (Ripple & Heat)

Voltage Ripple

Normal (1x)

Saturated (4x)

Local Heating

Ambient +10°C

Peak +40°C

Symptoms observed on boards

Common thresholds include ripple amplitude increasing by 2–4× when load exceeds peak transient margin, and EMI spikes near switching edges.

Root contributors

Statistical review shows transient peak currents 1.5–3× steady-state and narrow copper cross-sections leading to higher local heating.

Diagnostic & Remediation Framework

Category	Tools & Steps	Measurement Target
Test Setup	Scope (≥200 MHz), Current Probe, Thermal Camera, LCR Meter.	Catch short-duration spikes; map local hotspots.
PCB Fixes	Increase copper area, add thermal vias under pads.	Reduce hotspot by 8–20°C; improve heat spread.
Component Fixes	Derating Isat margin (25-50%), Paralleling, Core alternate.	Ensure inductance stability during peak transients.

Case Study A: High-Current Buck

Symptoms: 3× ripple and 20°C hotspot at peak transient.
Fix: Increased copper inductor pour + thermal vias.
Result: 60% ripple reduction; 15–20°C temperature drop.

Case Study B: Inrush Scenario

Diagnosis: 2.5× steady-state spikes causing audible EMI.
Fix: Soft-start implementation + Higher Isat component.
Result: Elimination of spike-related ripple and noise.

Production Checklist & Validation

Pre-production: Verify derating margin, confirm footprint thermal relief, and specify copper pour thickness in fab notes.
Verification: Include the AMELH6020S-R20MT by name on BOM and require factory copper verification.
Validation: 8–24 hour burn-in with transient profiles; set ripple increase threshold
Monitoring: Telemetry for long-term field ripple and peak current logging.

Summary

AMELH6020S-R20MT can enter saturation when transient peaks, tight layouts, or thermal limits combine.
Use high-bandwidth scopes and current probes to distinguish saturation from capacitor or MOSFET faults.
Layout improvements (thermal vias, larger copper) and proper component derating (25-50%) are key to reliability.

Frequently Asked Questions

How can I quickly confirm saturation versus MOSFET or capacitor faults?

Capture switching node waveforms and inductor current with a wideband current probe while stepping transient amplitude. Saturation shows a collapse in measured inductance and a simultaneous jump in ripple without a change in capacitor ESR. Thermal mapping will localize heat at the inductor.

What transient margin should I design for to avoid saturation?

Target an I_sat margin of 25–50% above expected peak transient current. If peaks are poorly characterized, design for 2× steady-state current or add soft-start/current-limiting to reduce transient energy.

When is paralleling inductors preferable to selecting a larger single part?

Parallel when board space or height constraints prevent using a larger component, or when thermal spreading is required. Ensure current sharing is balanced and verify EMI behavior under worst-case transients.
